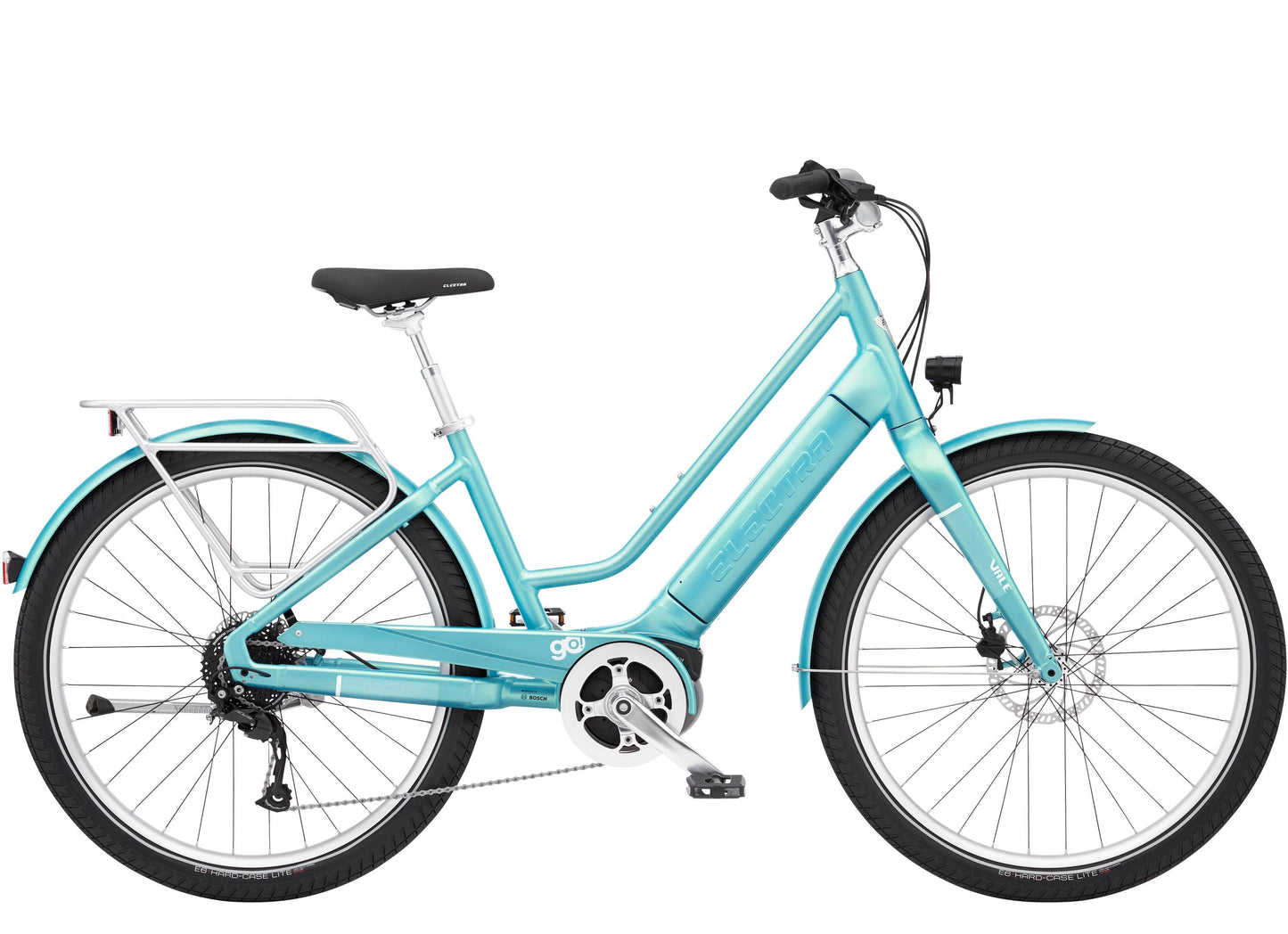

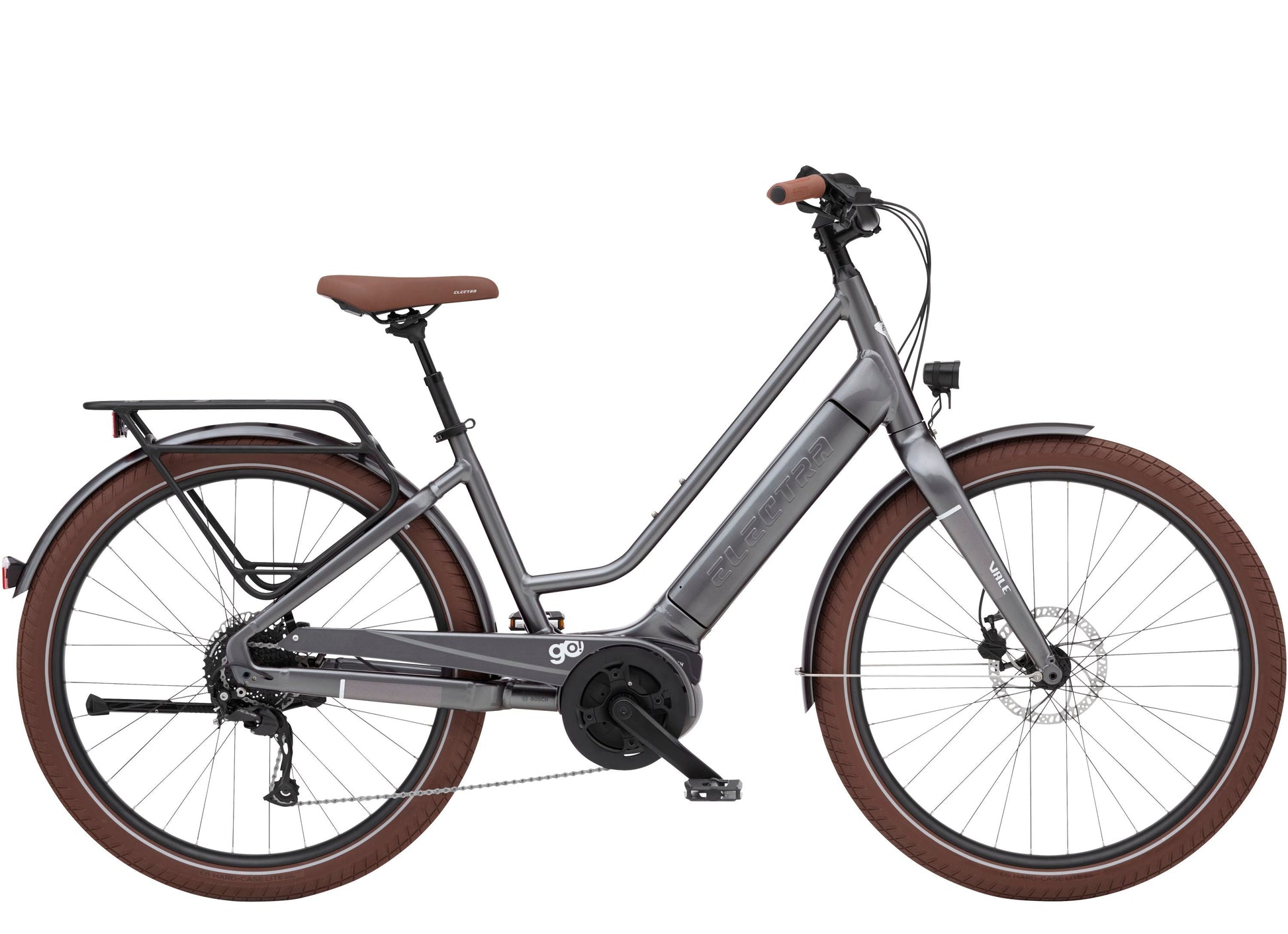

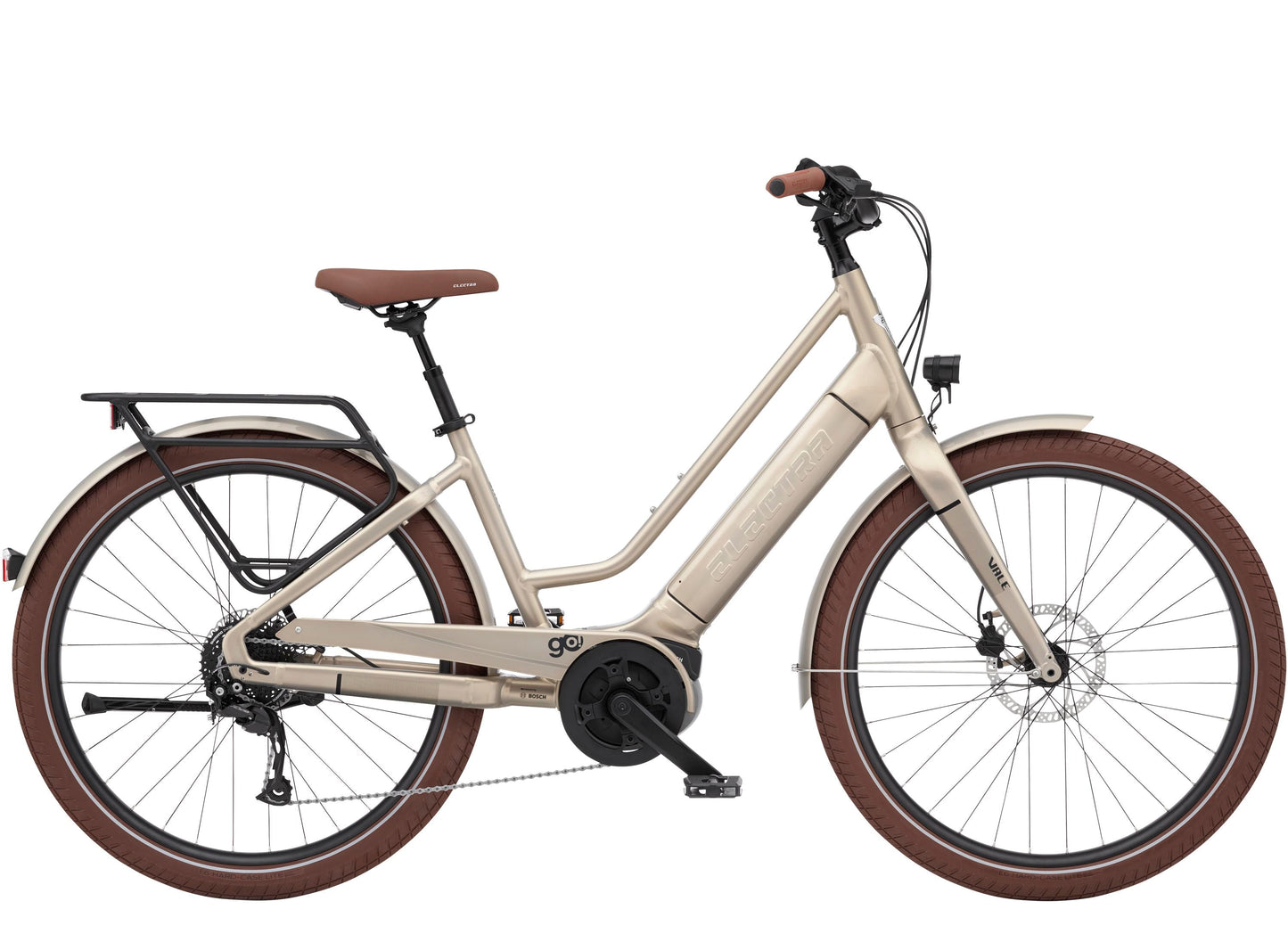

Electra Vale Go! 9D EQ

The Vale Go! 9D EQ will comfortably handle anything from everyday errands to daily commutes to fun getaways. This e-bike features a powerful Bosch Active Line Plus motor, fully integrated battery and a step-thru frame. Bosch's Kiox display delivers Bluetooth connectivity and advanced rider information. Most importantly it's an Electra, so it's a blast to ride.

• The Vale Go! 9D EQ features our patented Flat Foot Technology® and Bosch Active Line Plus motor for optimal comfort and control.
• Easily monitor rider data such as speed, battery charge and turn-by-turn navigation in one place with the hi-resolution Bosch Kiox color display.
• The step-thru frame provides easy on and off maneuverability.
• Equipped with color-matched fenders and LED lights, this e-bike is ready for all conditions.
• Turn your e-bike into a me-bike by adding a basket, bell or helmet. The e-ssentials, of course.

Compliant with leading safety regulations

The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification — so all you have to worry about is where your e-bike will take you next.

Frame	6061-T6 aluminum w/ patented Flat Foot Technology®
Fork	Alloy hydroformed
Tire	Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40''
Hub Rear	Alloy low-flange w/6-bolt disc, 32h, 12mm thru-axle
Rim	Alloy double walled 27.5''x32h
Skewer Front	Alloy thru-axle, 12mm x 143mm
Skewer Rear	Alloy thru-axle, 12mm x 174mm
Shifter	Shimano Alivio M3100, 9 speed
Rear Derailleur	Shimano Alivio M3100, long cage
Crank	ProWheel alloy, 170mm length
Cassette	Shimano HG200, 11-36, 9 speed
Chain	KMC E9T EPT anti-rust
Chainring	Steel 40T w/alloy guard
Brake	Tektro hydraulic disc
Brake Rotor	Tektro, 6-bolt, 160mm // Tektro, 6-bolt, 180mm
Pedal	Resin platform w/grip tape tread
Saddle	Selle Royal Essenza Plus
Seatpost	Alloy suspension post 27.2x400mm, 40mm travel
Handlebar	Alloy custom bend
Stem	Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Headset	FSA e2 integrated
Grips	Electra Vale custom ergo Kraton w/alloy locking collars
Cargo Rack	Rear MIK compatible rack
Light	Spanninga Axendo XE, LED, headlight // Spanninga Presto XE, LED, taillight
Kickstand	Adjustable length alloy kickstand
Battery	Bosch PowerTube 500Wh
Motor	Bosch Active Plus, 250 watt, 50 Nm, 20mph or 32km/h
Charger	Bosch standard 4A, 100-240V

Geometry Chart

Frame Reach	31.1
Frame Stack	60.6
Head Angle	68.0°
Head Tube Length	21
Seat Tube	45.6
Seat Tube Angle	67.0°
Standover	51
Wheelbase	119
Wheel Size	27.5"

Size

M
