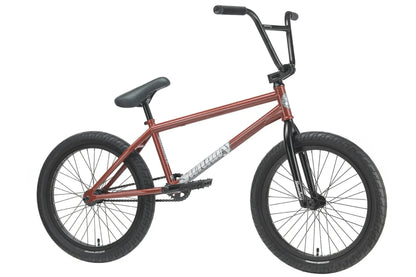

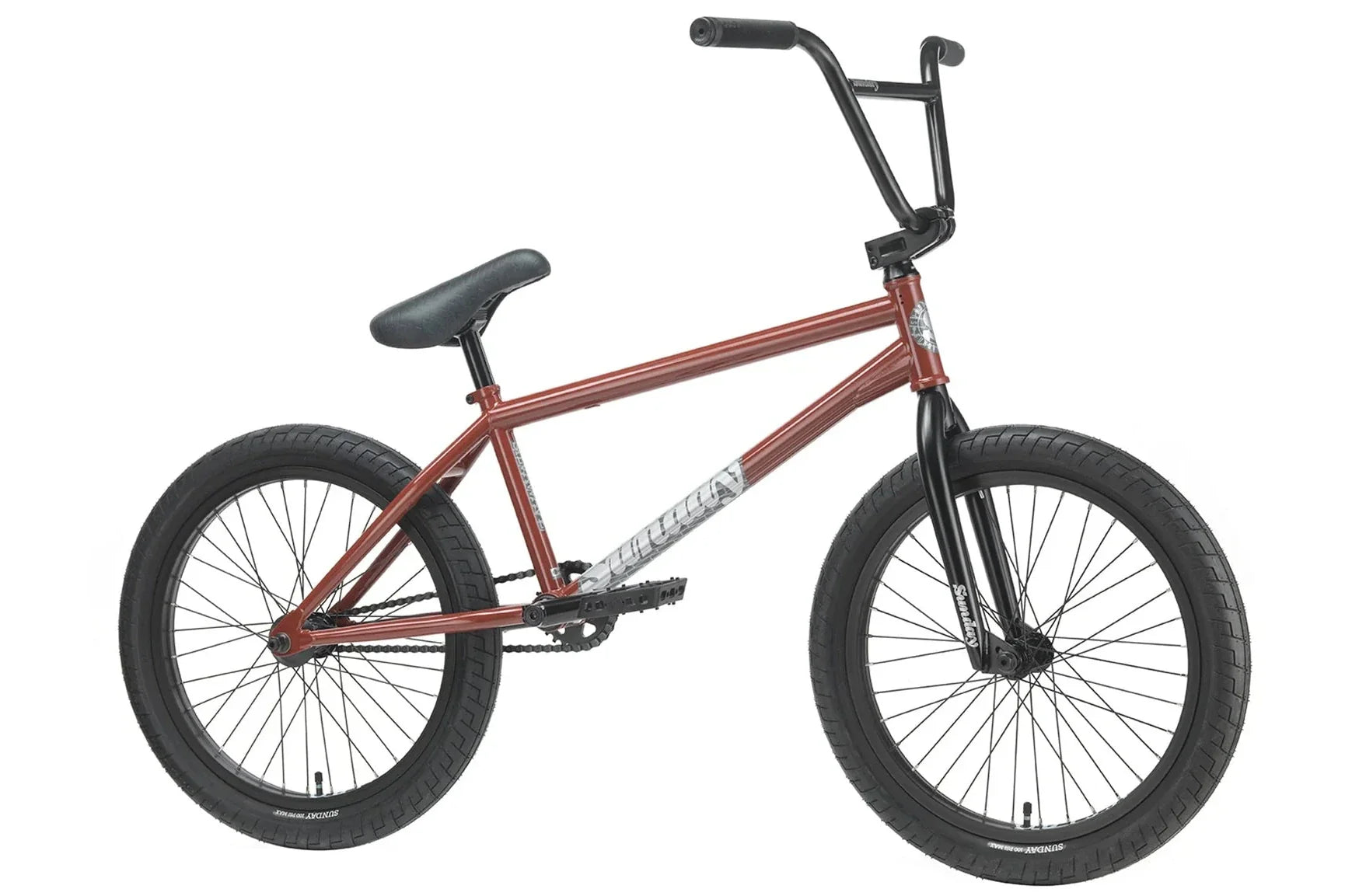

The Sunday Silvawave Brett Silva Signature Bike is an all purpose machine setup for a slightly taller rider. The Silvawave complete is built around Brett Silva's aftermarket frame that has a geometry that lends itself well to all styles of riding with a slightly longer chainstay length than most frames today. Fully heat treated chromoly paired with Sunday's infamous wave downtube means this frame will last a lifetime. Sprinkled with aftermarket parts adding even more confidence will have you excited to get out there and shred.
Odyssey Springfield Brake, Lever and Quik-Slick Kable are included (not pictured).
- NEW PRO MODEL
- Sunday Silvawave 100% Chromoly Aftermarket Frame
- 100% Chromoly Fork and Handlebars
- Sunday Silva Brick Pivotal Seat
- Odyssey Bluebird Half-link Chain
- Odyssey C5 Cassette Hub
- LHD/RHD Switchable
- Odyssey Quadrant Rims
- Sunday Street Sweeper v2 2.4” Tires
Specifications

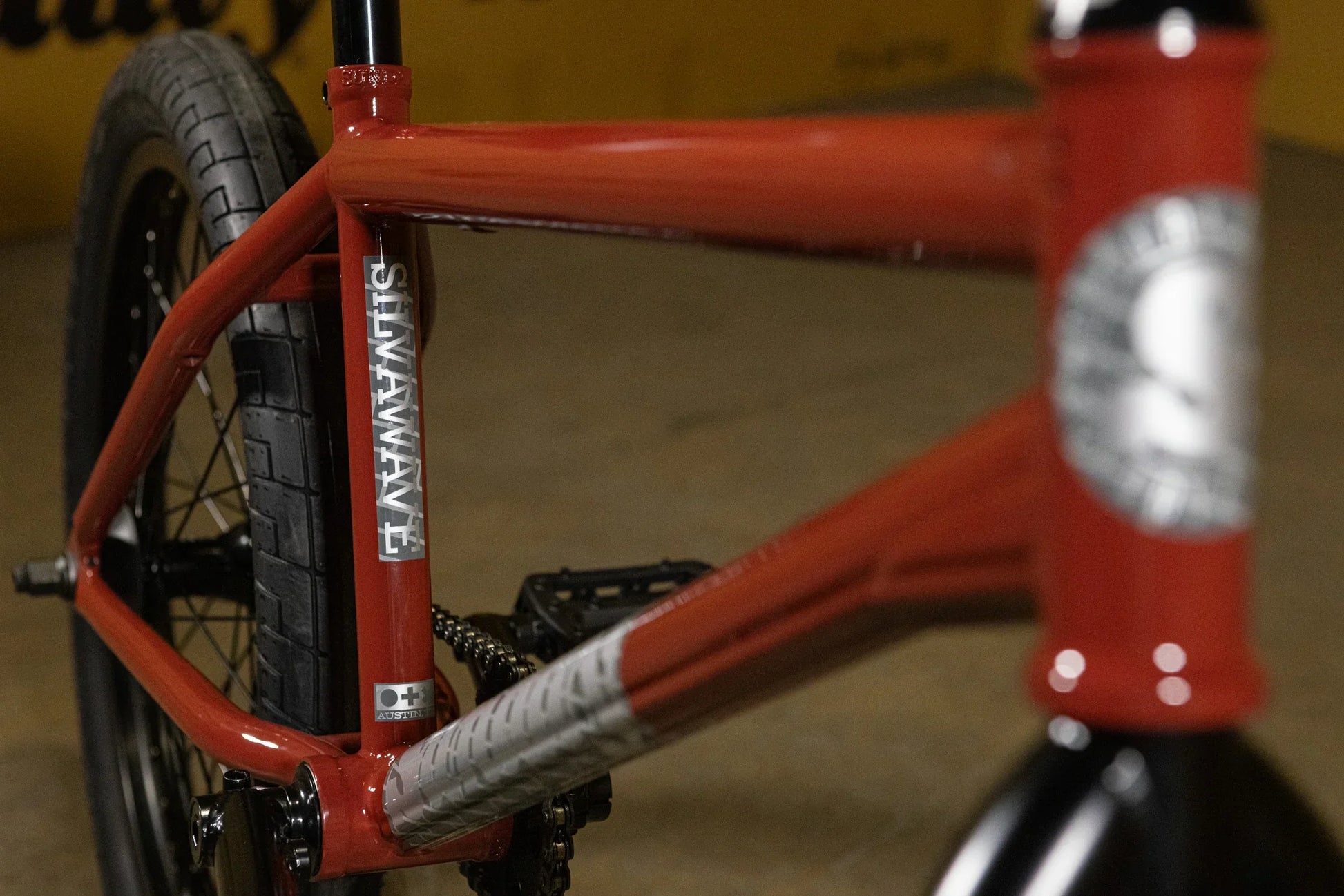

Frame: Sunday Silvawave, 21" TT, 100% chromoly, aftermarket frame, w/ removable brake hardware
Fork: Sunday Pro, 20", 100% chromoly fork w/ 1-piece steerer tube and welded pre-load, 25mm offset

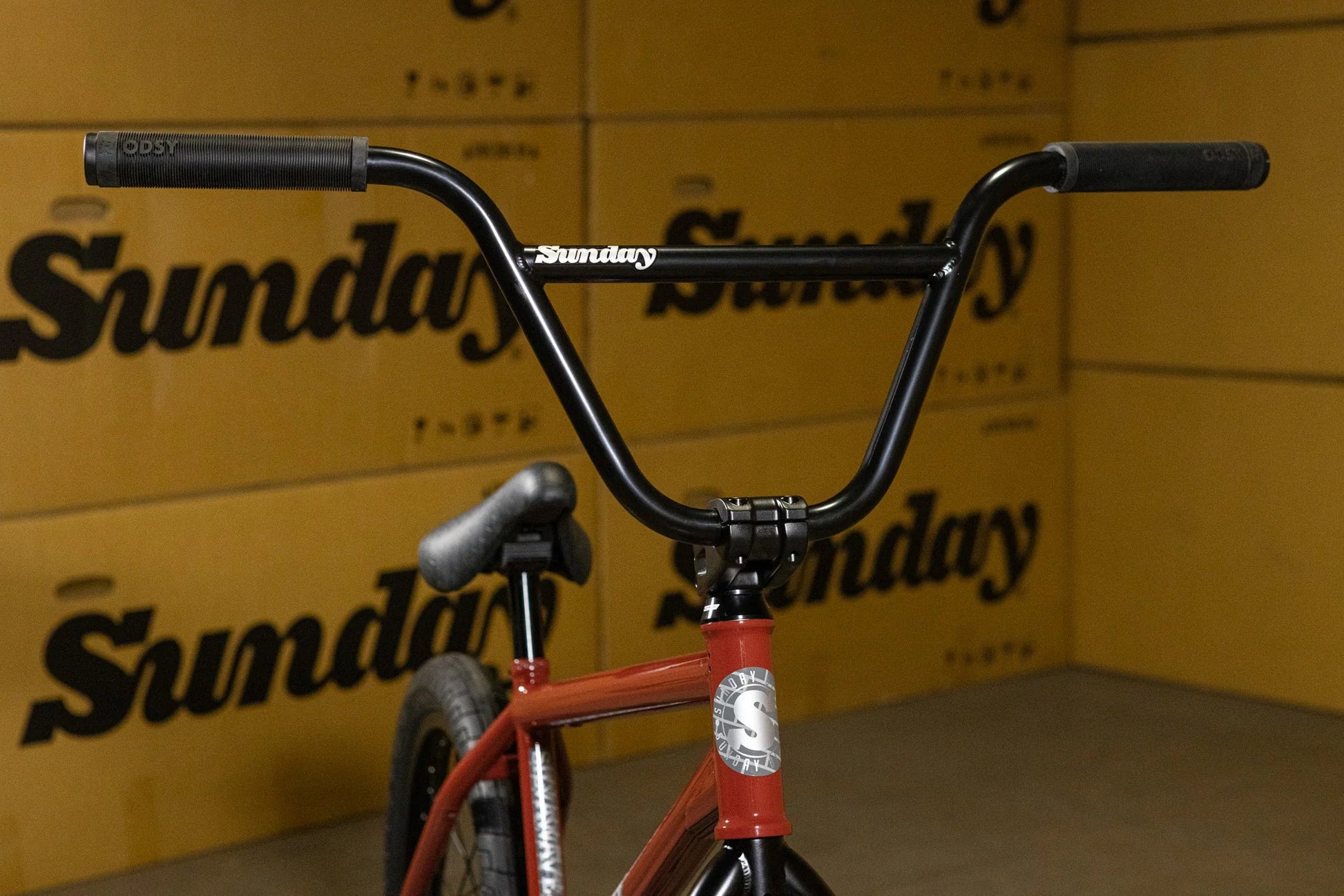

Handlebar: Sunday, 9 x 28.5", 12° backsweep, 4° upsweep, 100% chromoly, 2-piece

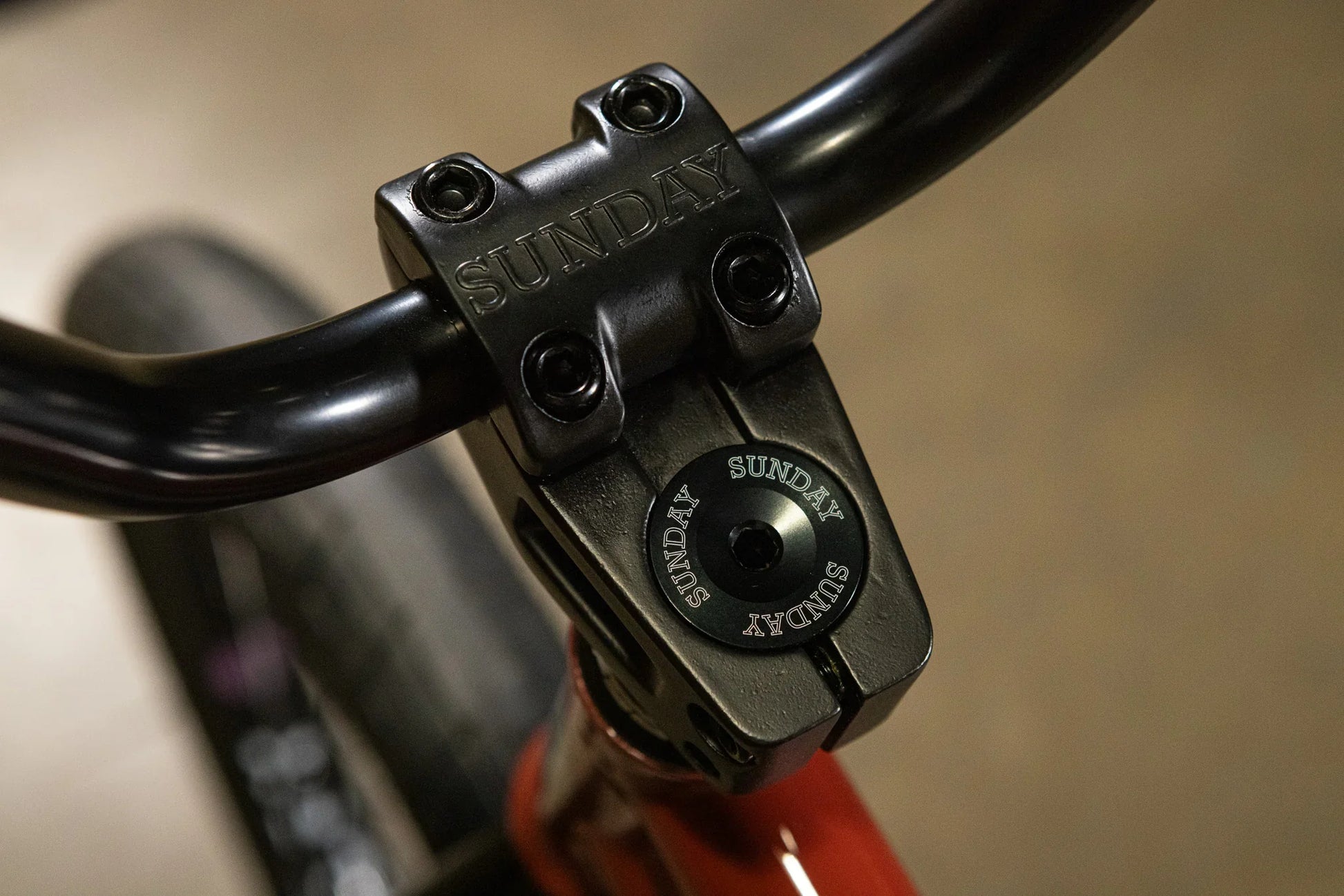

Stem: Sunday Freeze top load, 48mm
Headset: FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminum
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Linear Quik Slic

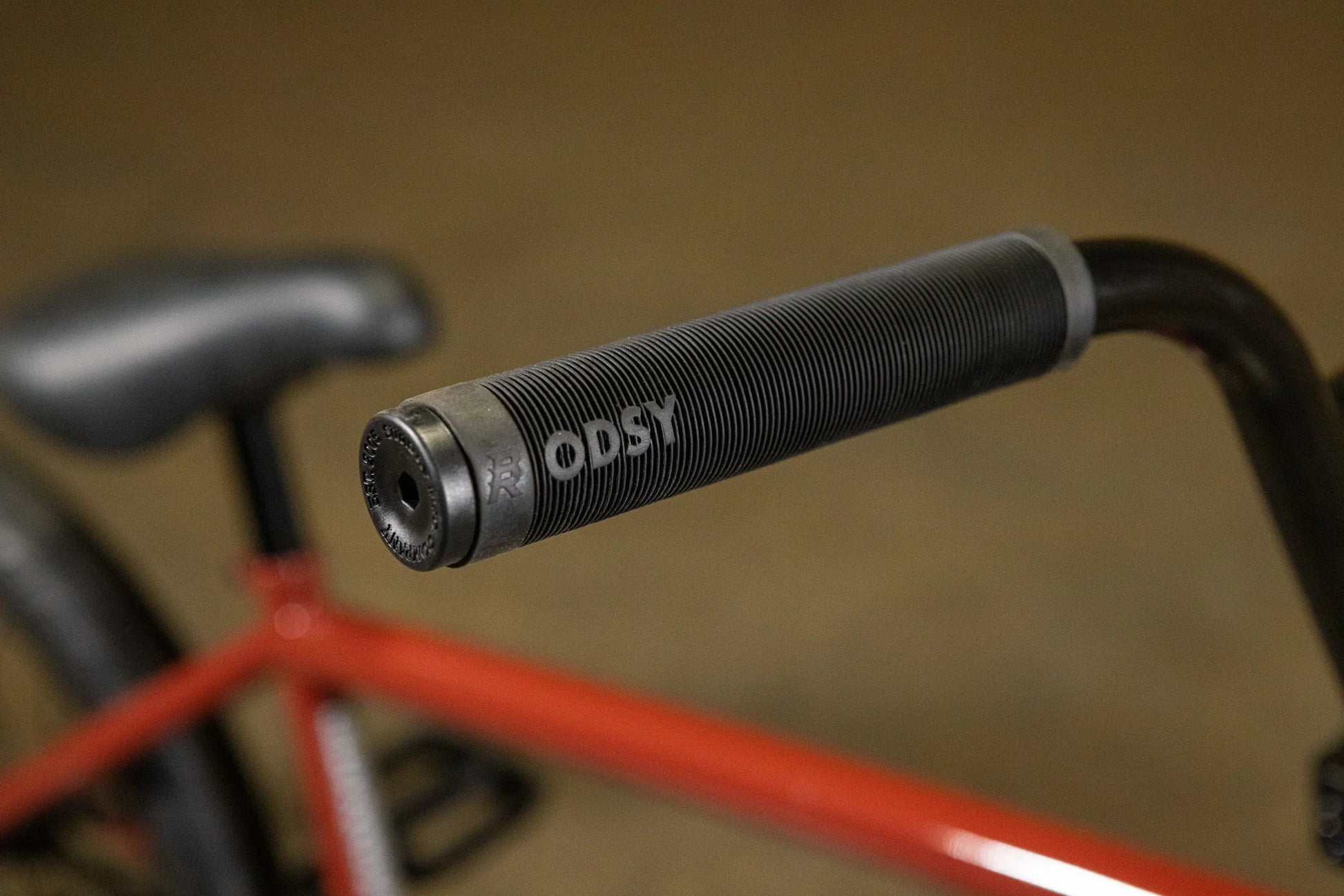

Grips: Odyssey Broc Raiford

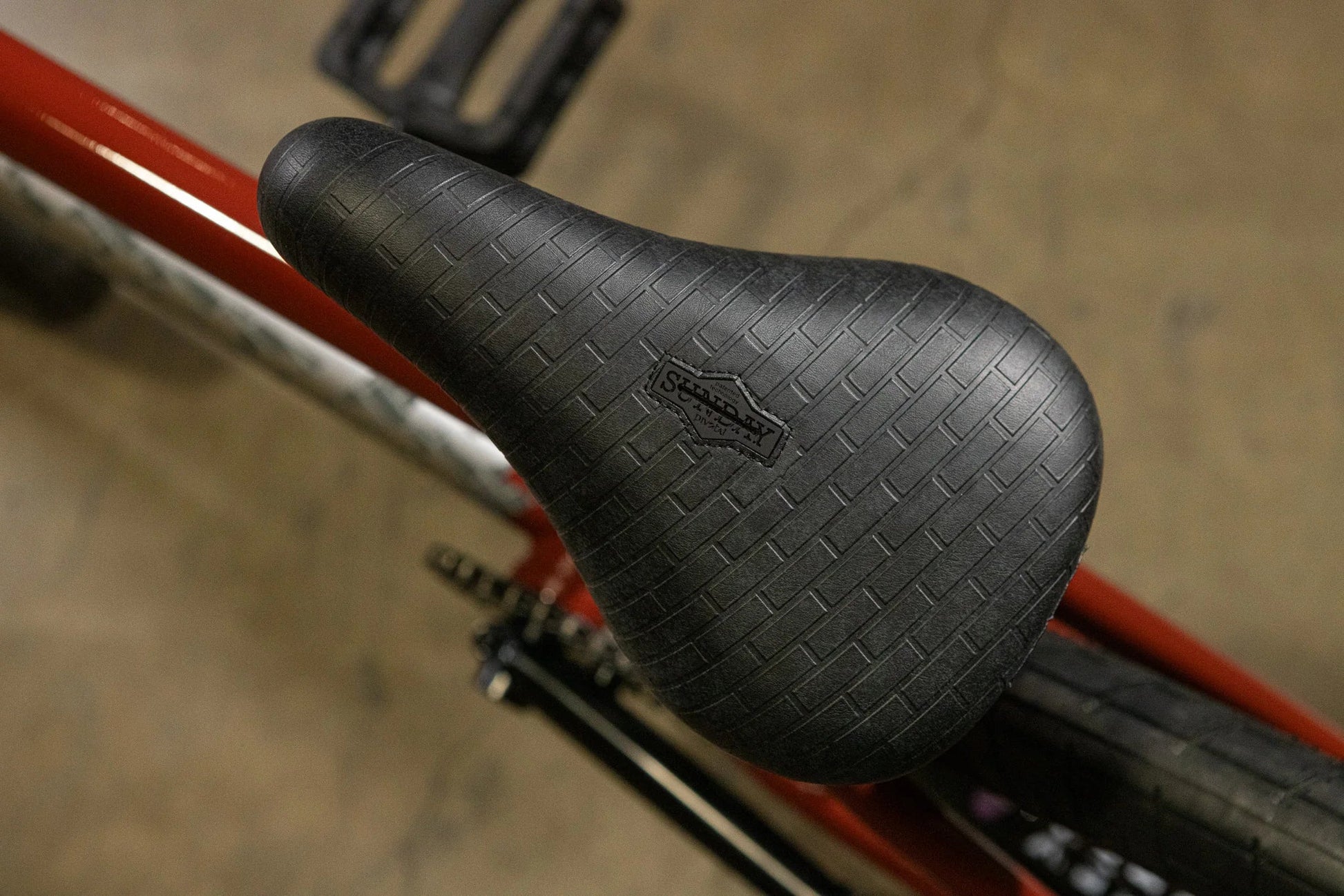

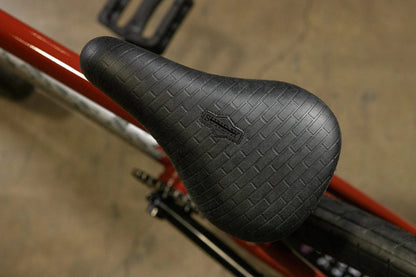

Seat: Sunday Brett Silva, Pivotal
Seat post: Sunday Pivotal, 300mm
Seat Clamp: Integrated

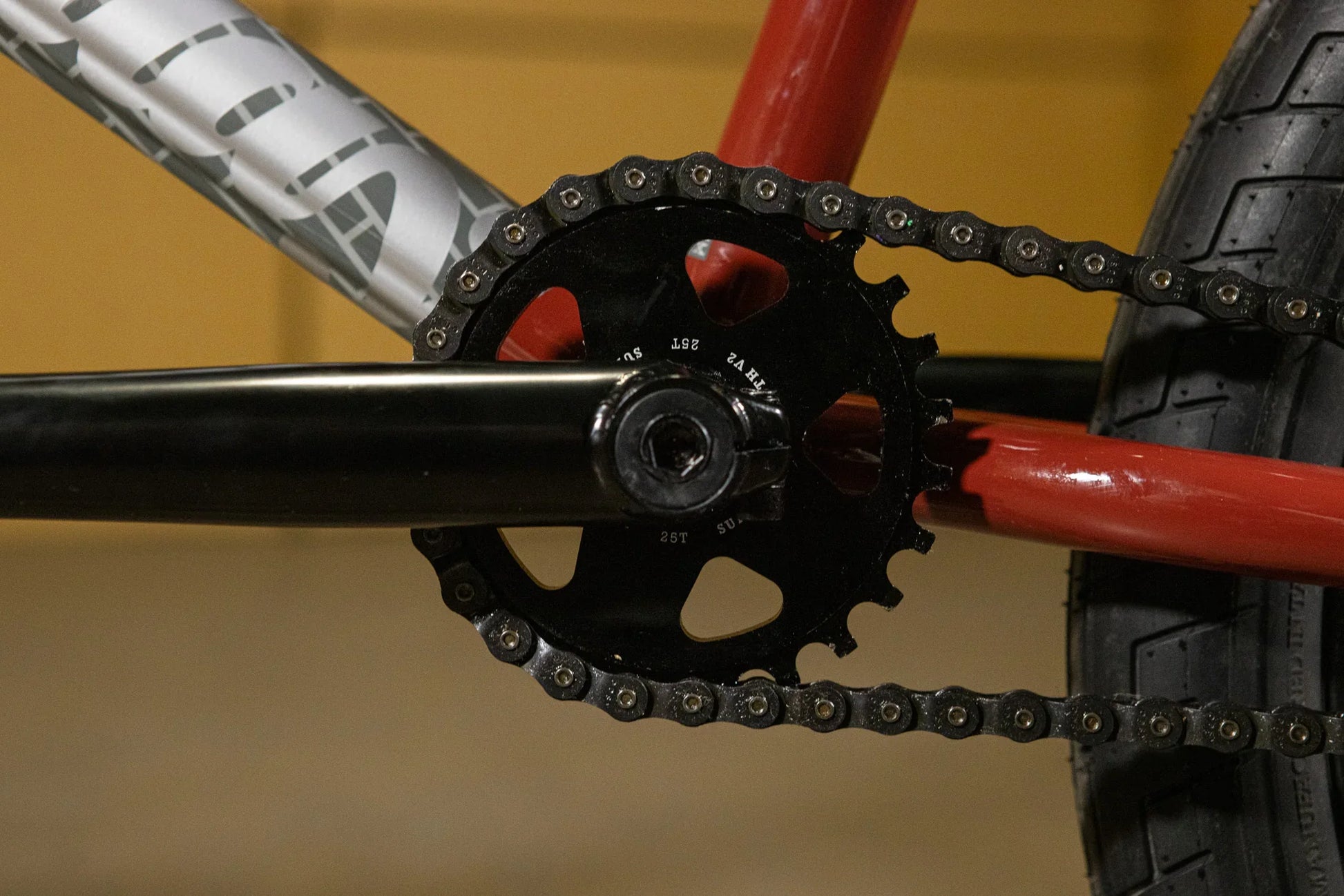

Sprocket: Sunday Sabretooth v2, 25T, 6061 aluminum
Cranks: 165mm, 3-piece, chromoly (LHD/RHD Compatible)
BB Parts: Sealed, Mid, 19mm

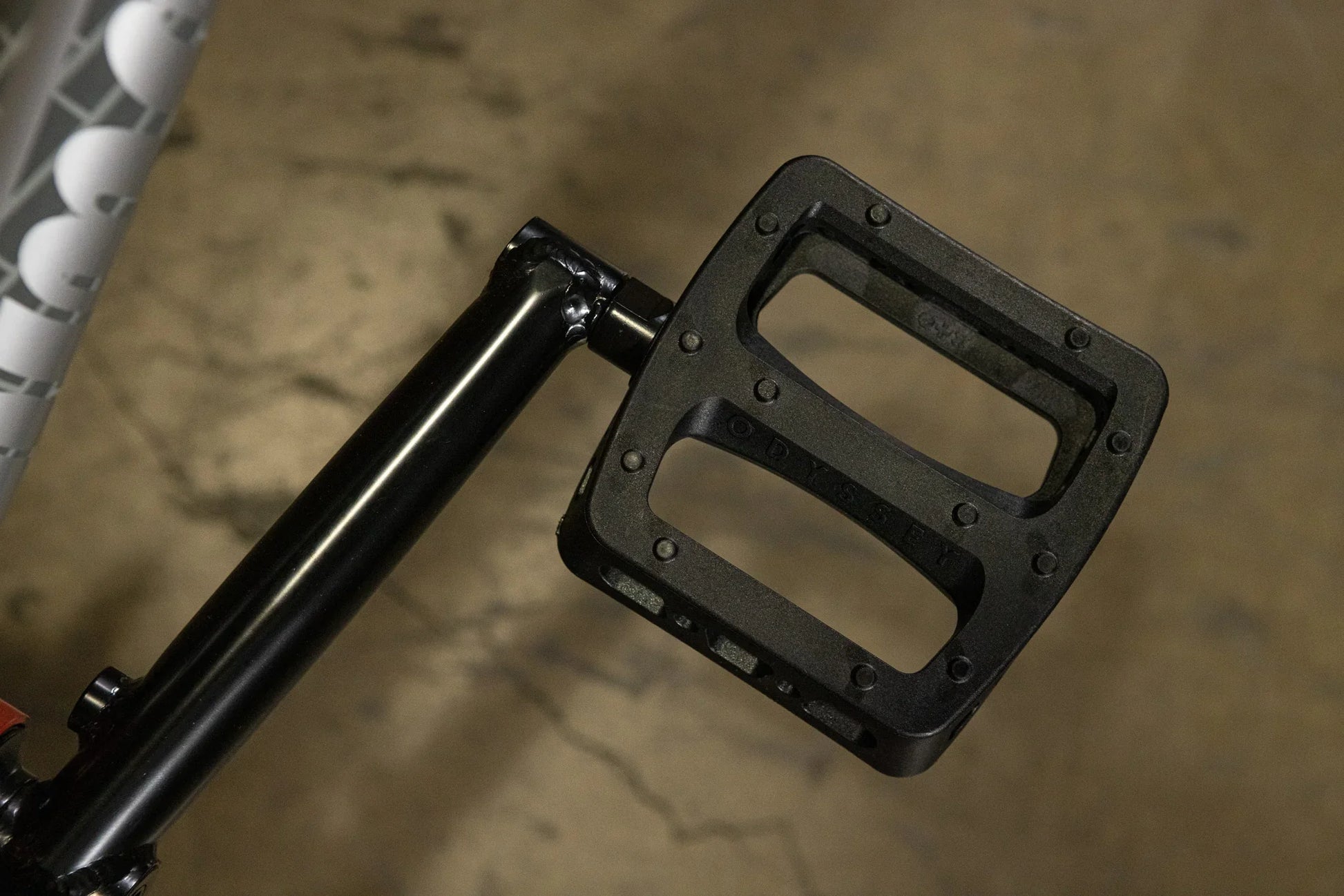

Pedals: Odyssey Twisted PC Pro

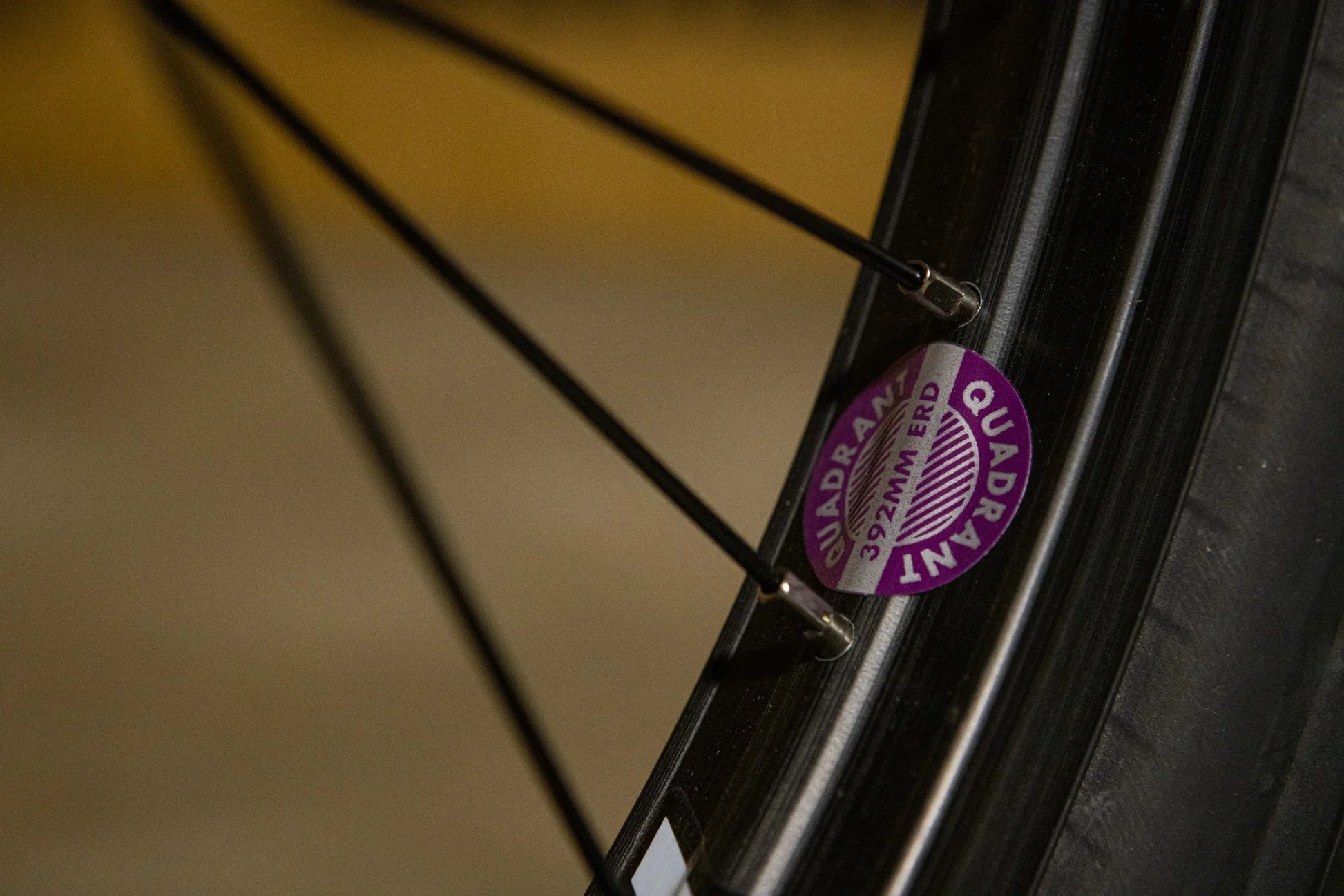

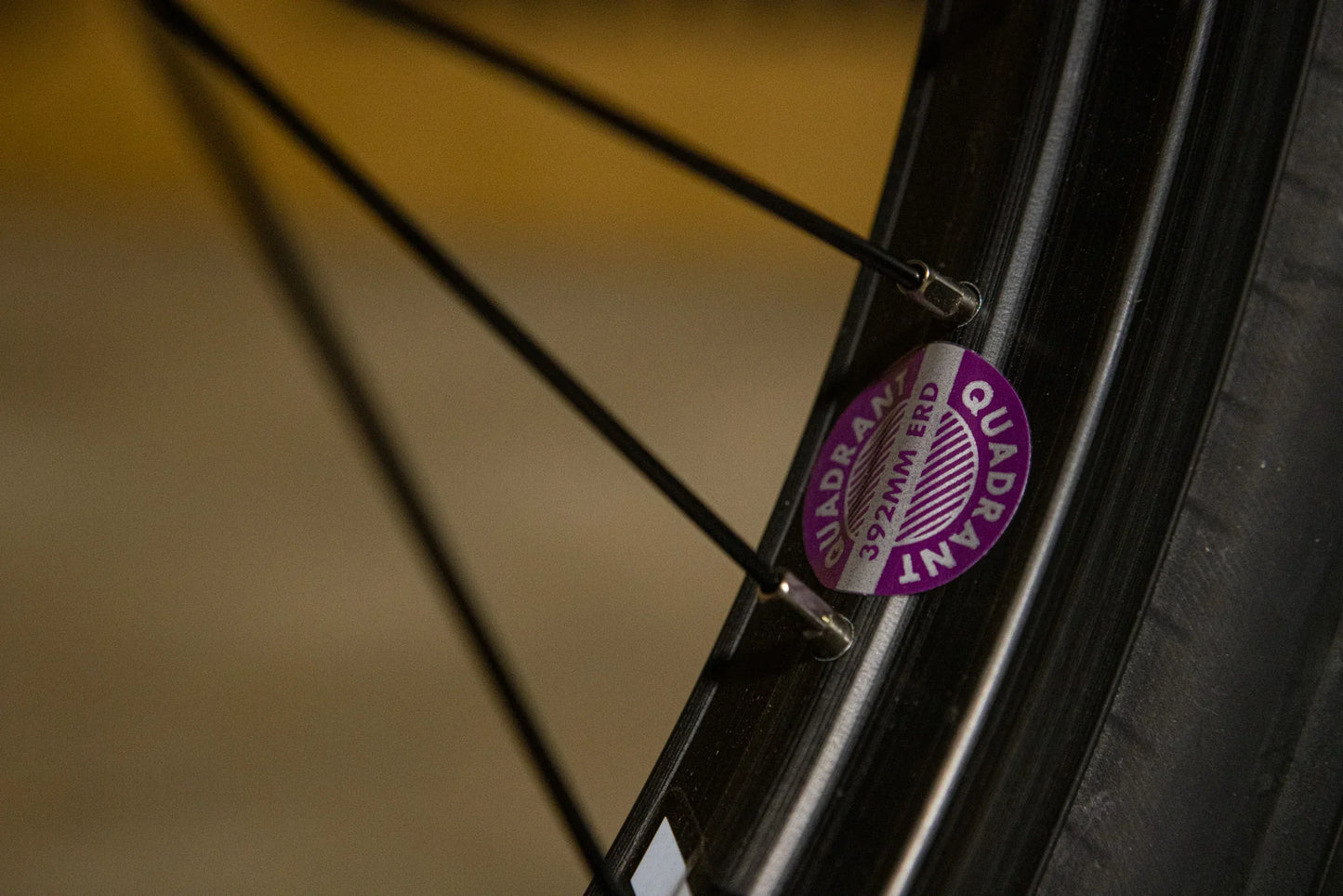

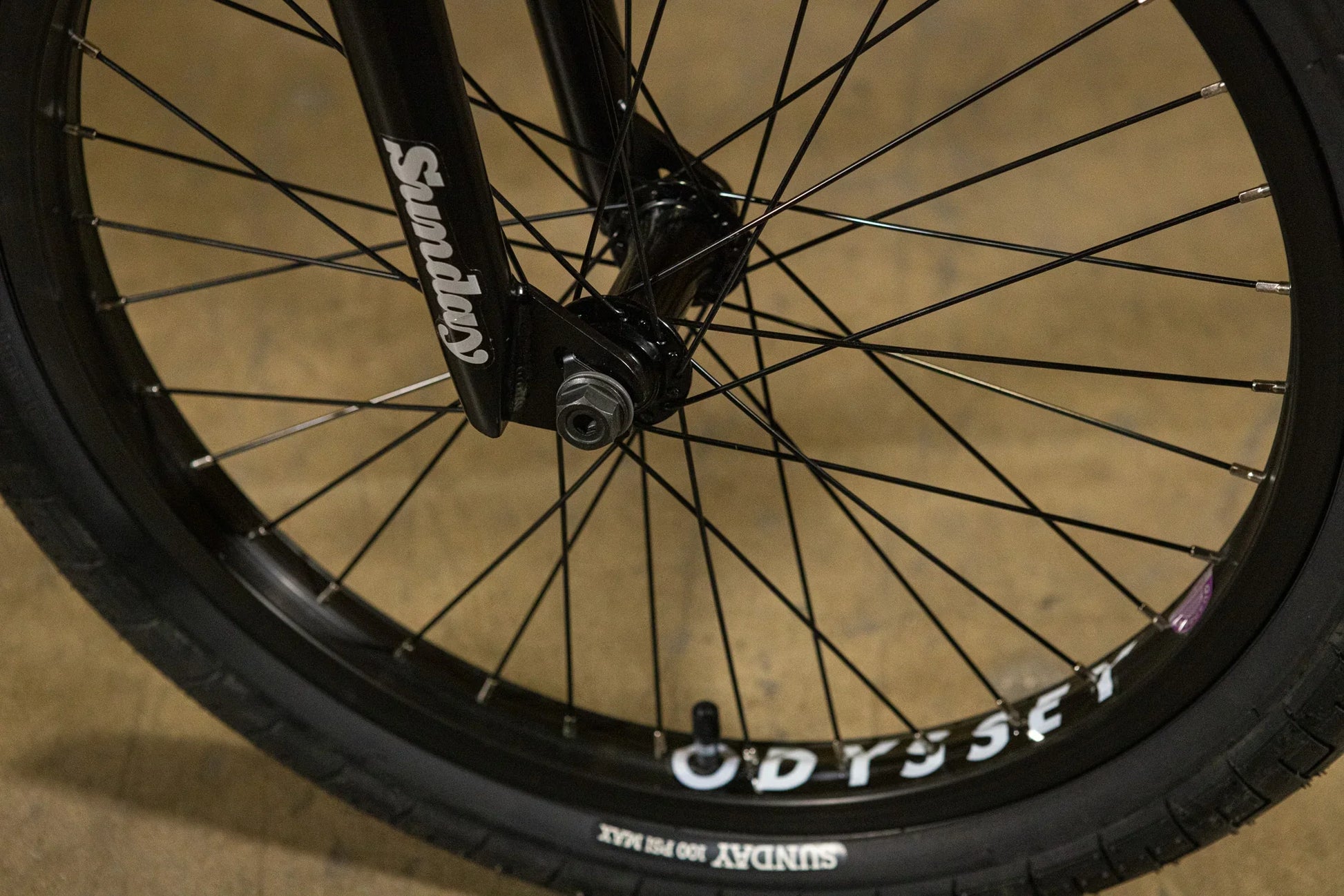

Rims: Odyssey Quadrant, 20", 36H

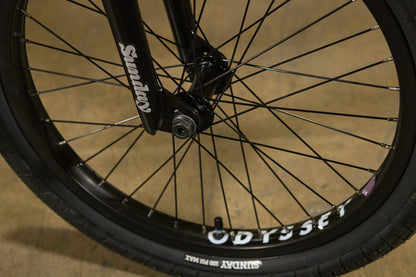

Front Hub: Sunday, 36H, low-flange, sealed , 3/8" inbound axle bolts

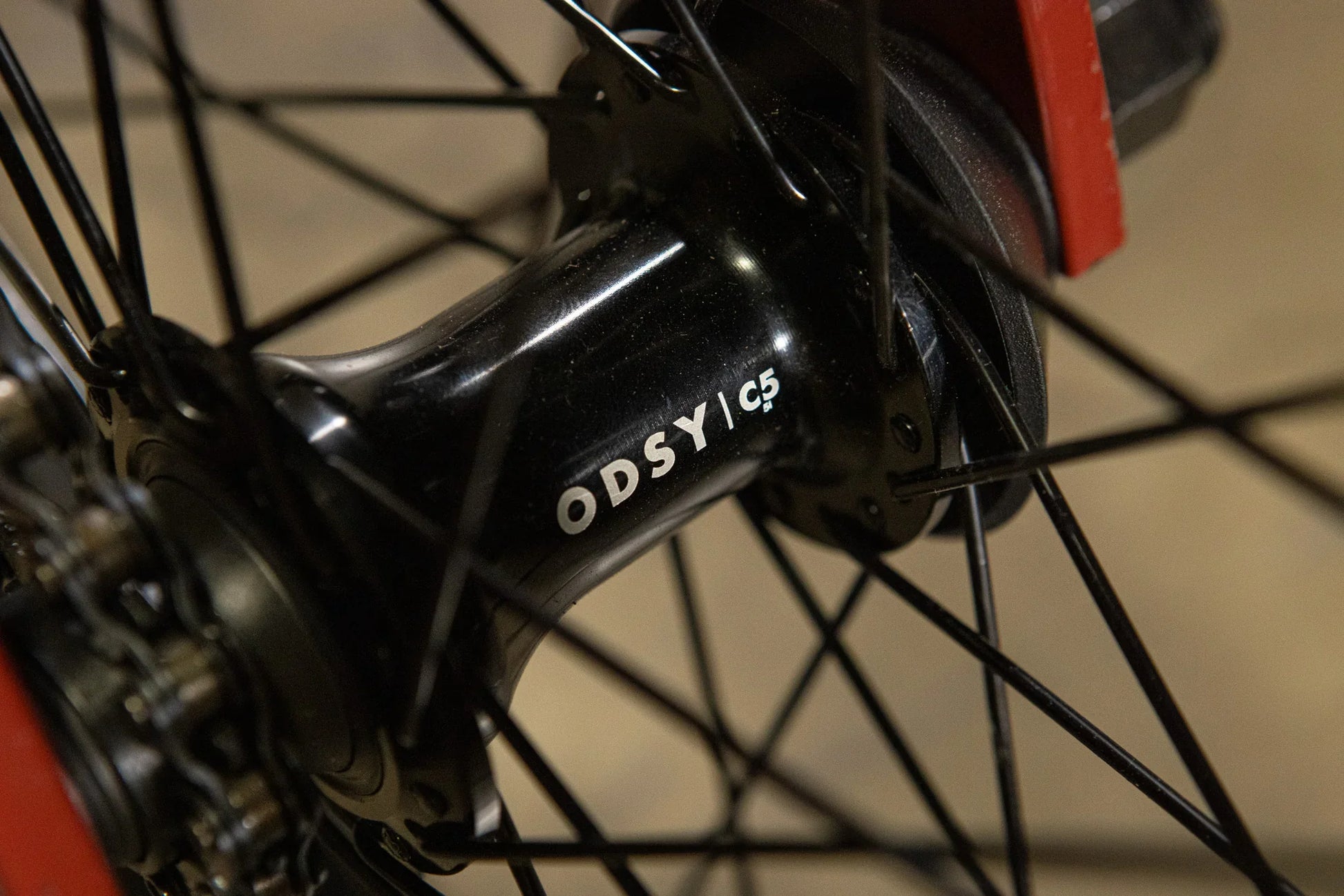

Rear Hub: Odyssey C5 Cassette Hub, 36H, 14mm axle, 9T Driver, non-drive side plastic guard, RHD/LHD Switchable
Spokes: 14g steel, black

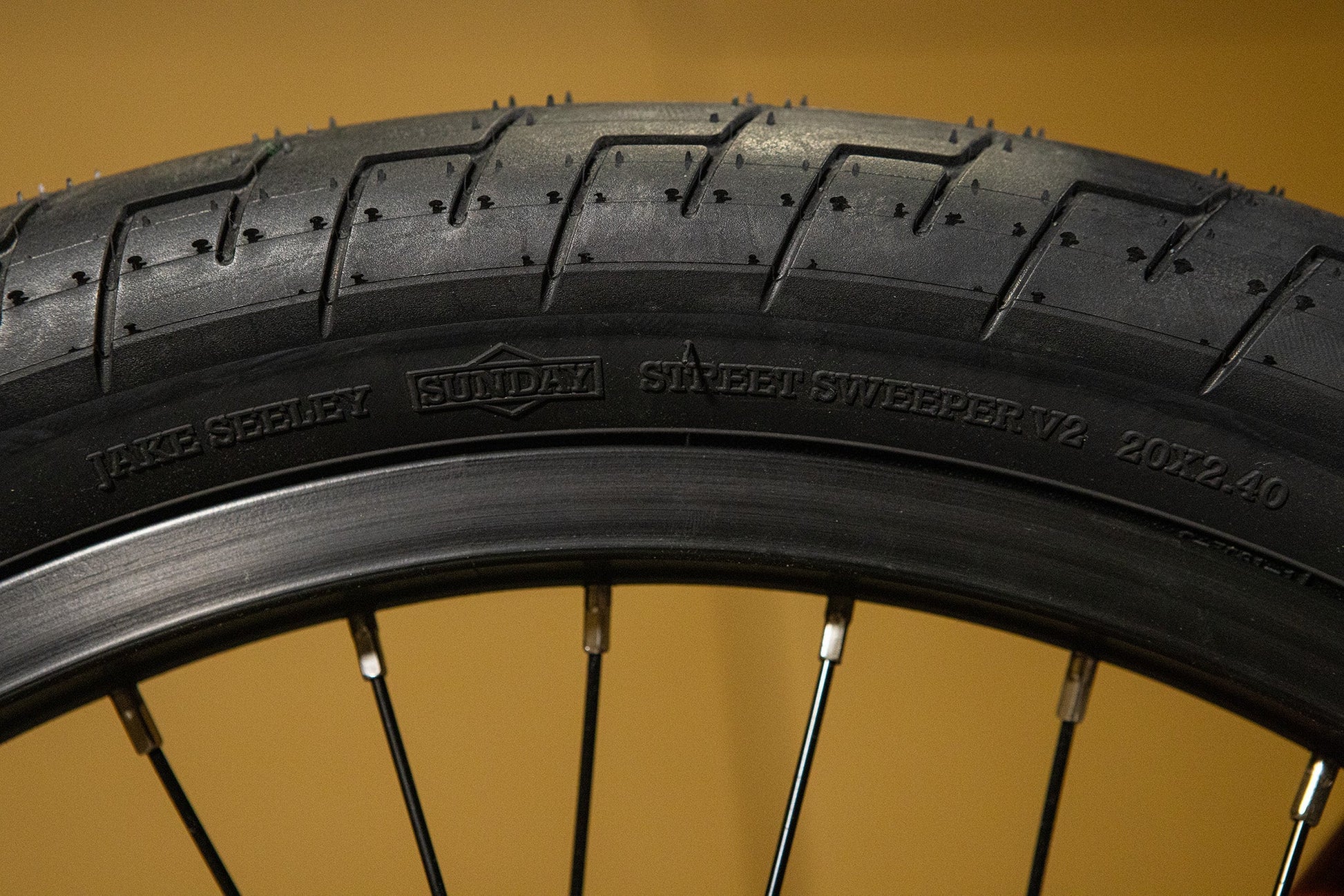

Tires: Sunday Street Sweeper v2, 20 x 2.4" (F & R)
Chain: Odyssey Bluebird Half-Link
Approx. Weight: TBD
Frame Geometry
Top Tube Length: 21"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.45”-13.7"
Bottom Bracket Height: 11.625"
Standover: 9.5”
Handlebar Geometry
Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°
